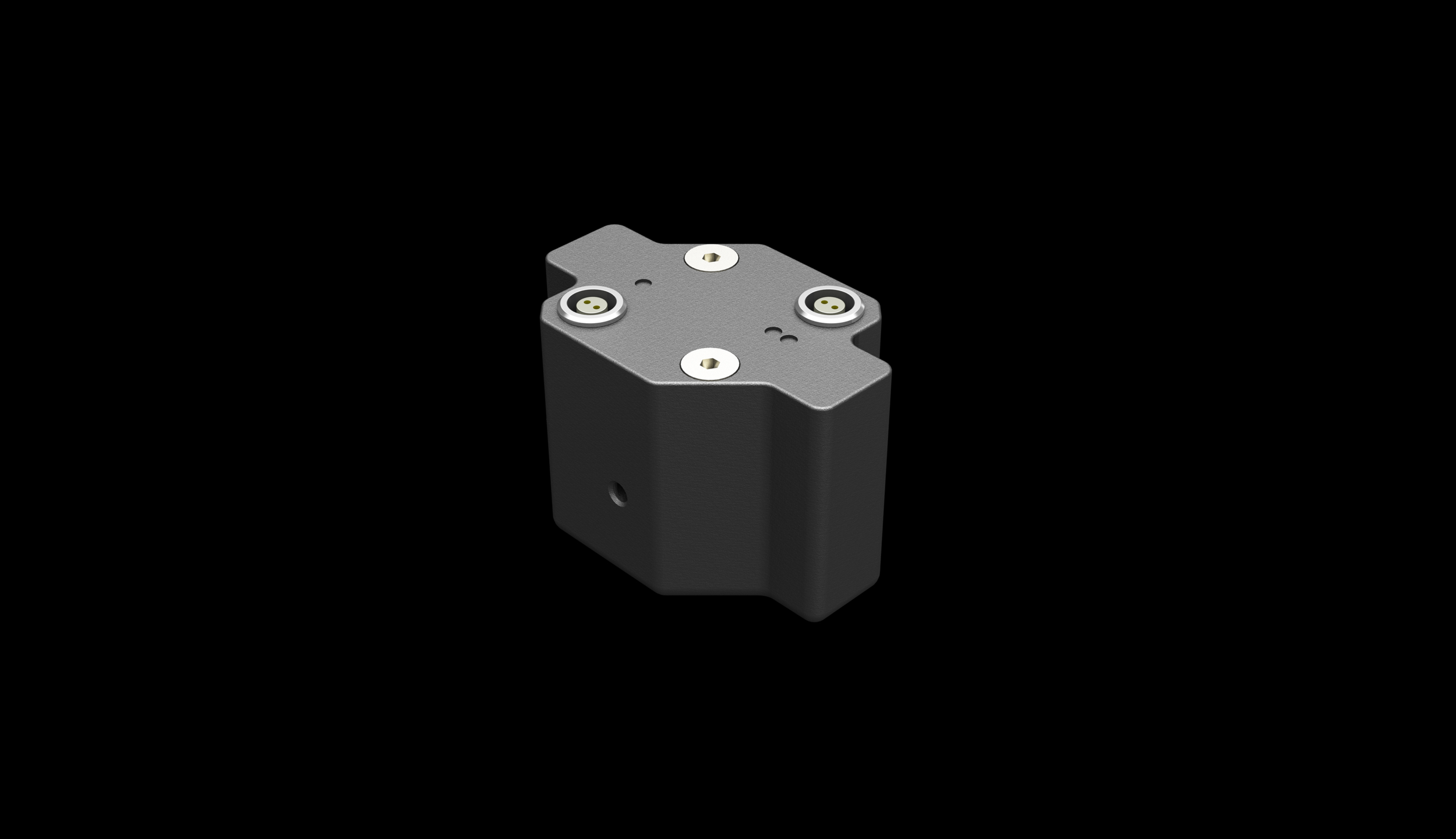

Dual-Channel Linearly Polarised EMAT
Our Dual-Channel Linearly Polarised EMAT probe is optimised for the dual-channel SONUS EVO and EVO Lite acquisition systems in order to generate SH waves in two different orientations. These waves can be used to perform thickness measurement and crack detection simultaneously. The two channels can also be employed to estimate the defect orientation and material anisotropy.
Technical Specifications
Sensor Name
Dual-Channel Shear Wave EMAT
Polarisation
Linear
Aperture
10 mm x 10 mm
Max. Lift-Off Tolerance
2.5 mm
Operating Frequency
3 - 5 MHz
Thickness Measurement Range
2 mm – 100+ mm
Min. Detectable Crack Depth
1 mm
Temperature Measurement Range
-10°C – 120°C ( +30 mins @ 80°C, +15 mins @ 120°C )
Connectors
2x 2 Pin Lemo 0B
Sensor Size
58 L x 38 W x 39 H (mm)
Sensor Weight
142 g
