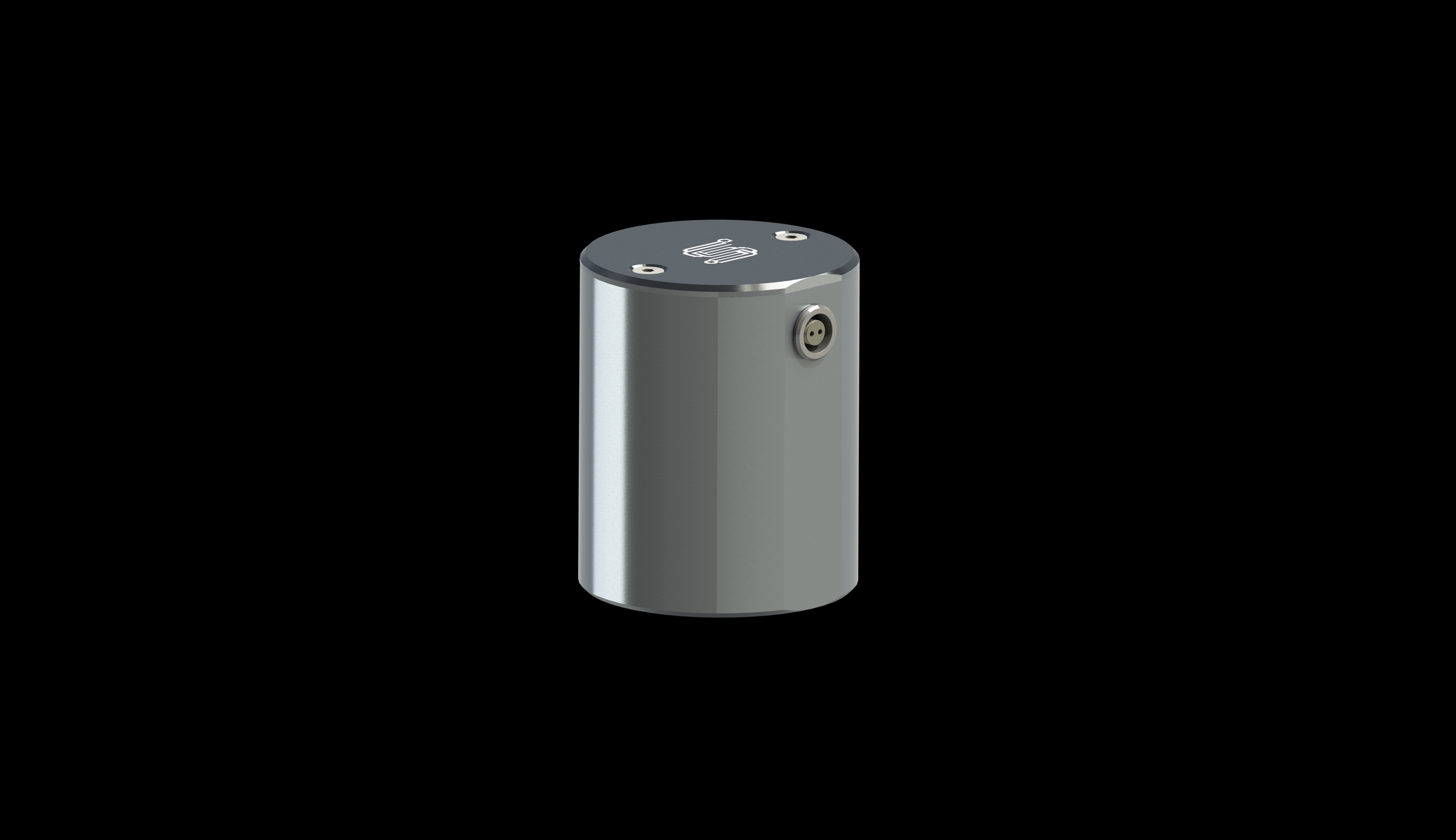

High Lift-Off RP EMAT
Our High Lift-Off Single-Channel RP EMAT probe is optimised for the SONUS VITESSE family of acquisition systems to generate SH waves radially for thickness measurement applications. This EMAT is most appropriate where large surface lift-off is required, with the ability to take measurements through thick material coatings or hard-to-reach specimens while retaining high precision.
Technical Specifications
Sensor Name
Single-Channel High Lift-Off Radially Polarised EMAT
Polarisation
Radial
Aperture
28 mm Diameter Active Area
Max. Lift-Off Tolerance
6+ mm
Operating Frequency
3 - 5 MHz
Thickness Measurement Range
2 mm – 100+ mm
Temperature Measurement Range
-10°C – 120°C ( +30 mins @ 80°C, +15 mins @ 120°C )
Connectors
2 Pin Lemo 0B
Sensor Size
49 L x 49 W x 60 H (mm)
Sensor Weight
320 g
