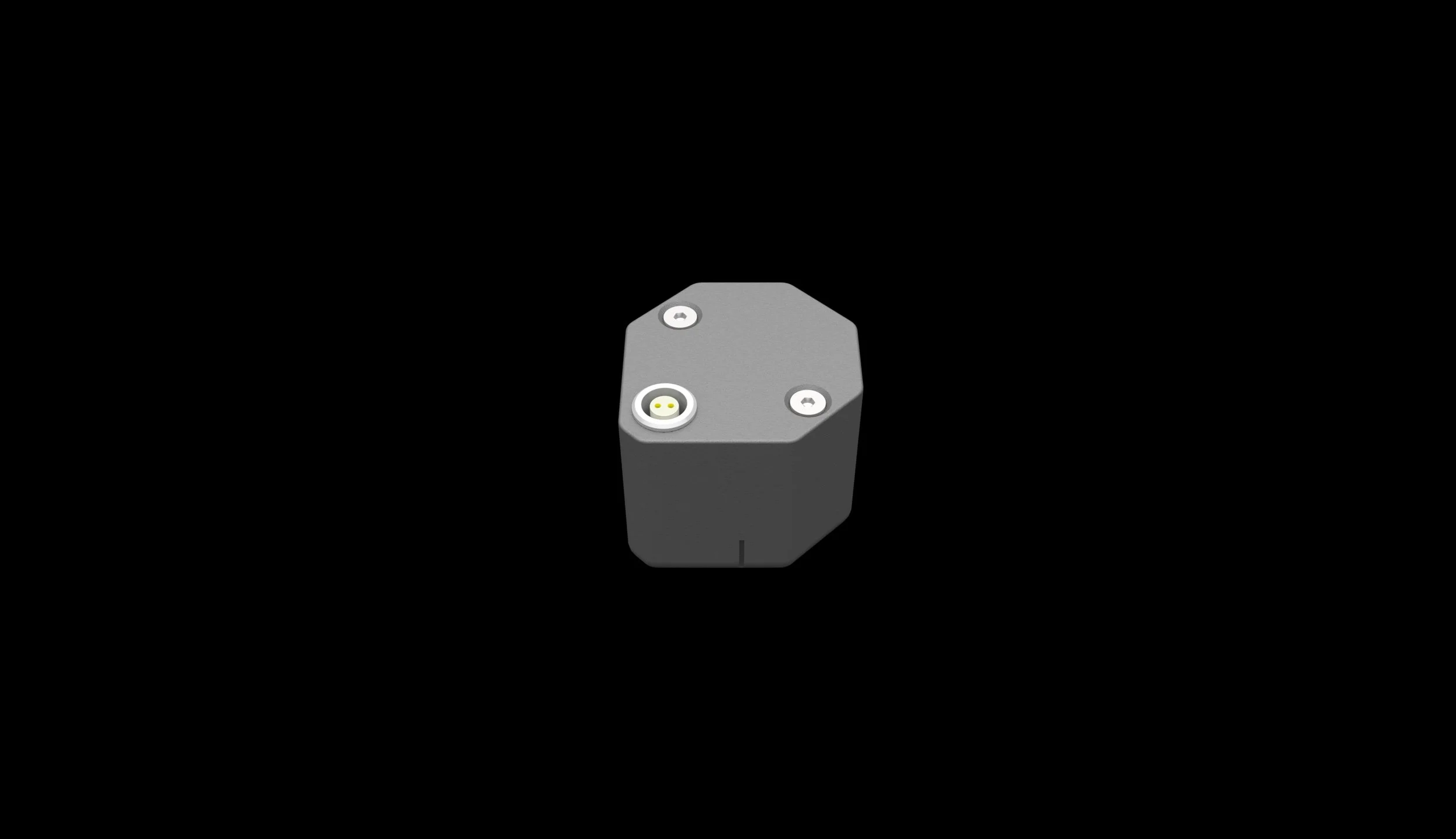

Low-Pull Single-Channel Linearly Polarised EMAT
Our Low-Pull Single-Channel Linearly Polarised EMAT probe is optimised for the SONUS EVO and EVO Lite acquisition systems to generate SH waves in a single direction for thickness measurement applications for scenarios where low magnetic force is necessary.
Technical Specifications
Sensor Name
Low-Pull Single-Channel Linearly Polarised EMAT
Polarisation
Linear
Aperture
10 mm x 10 mm
Max. Lift-Off Tolerance
2 mm
Operating Frequency
3 - 5 MHz
Thickness Measurement Range
2 mm - 100+ mm
Temperature Range
-10°C – 120°C ( +30 mins @ 80°C, +15 mins @ 120°C )
Connector
2 Pin Lemo 0B
Sensor Size
38 L x 38 W x 33 H (mm)
Sensor Weight
62 g
