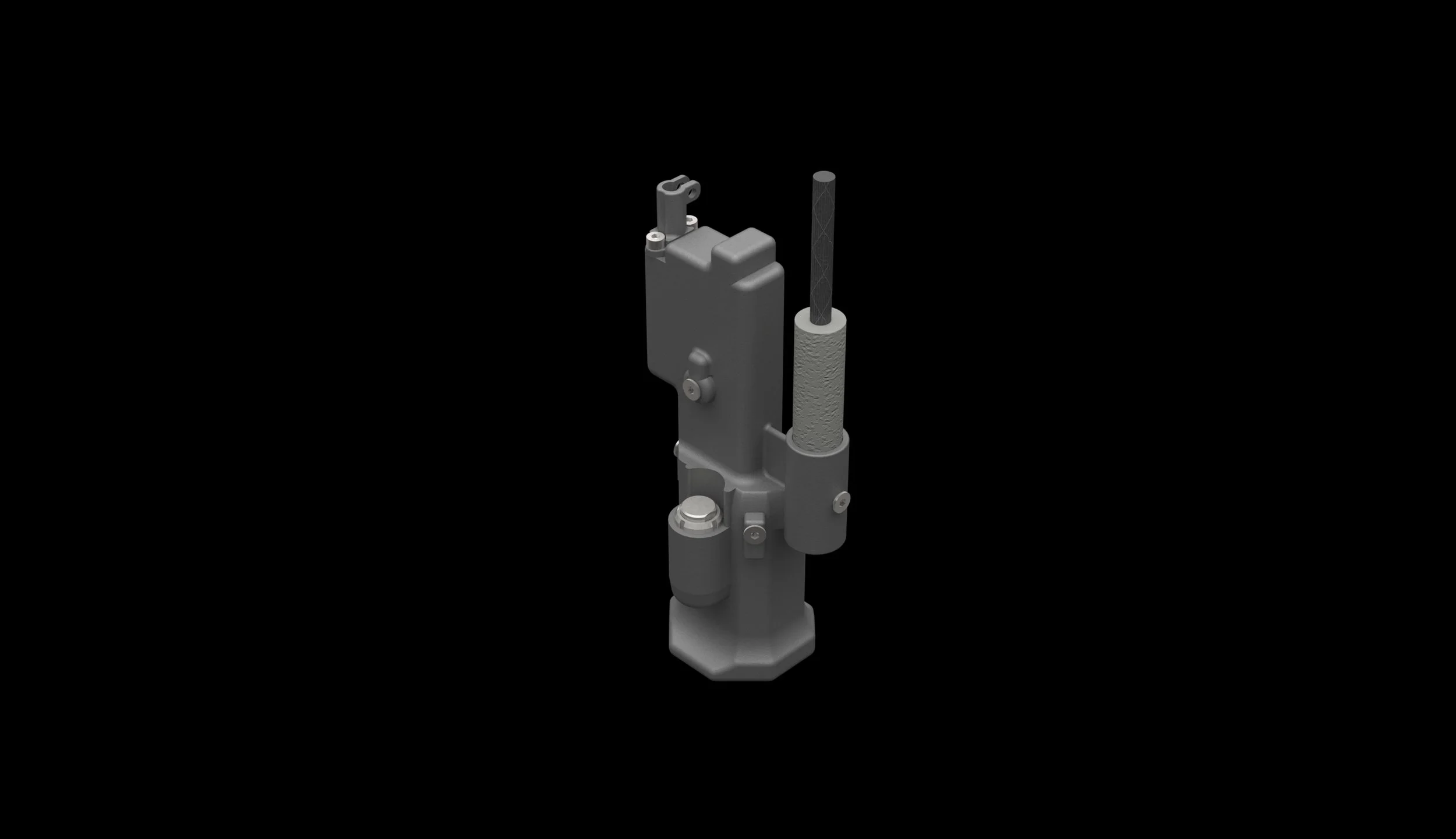

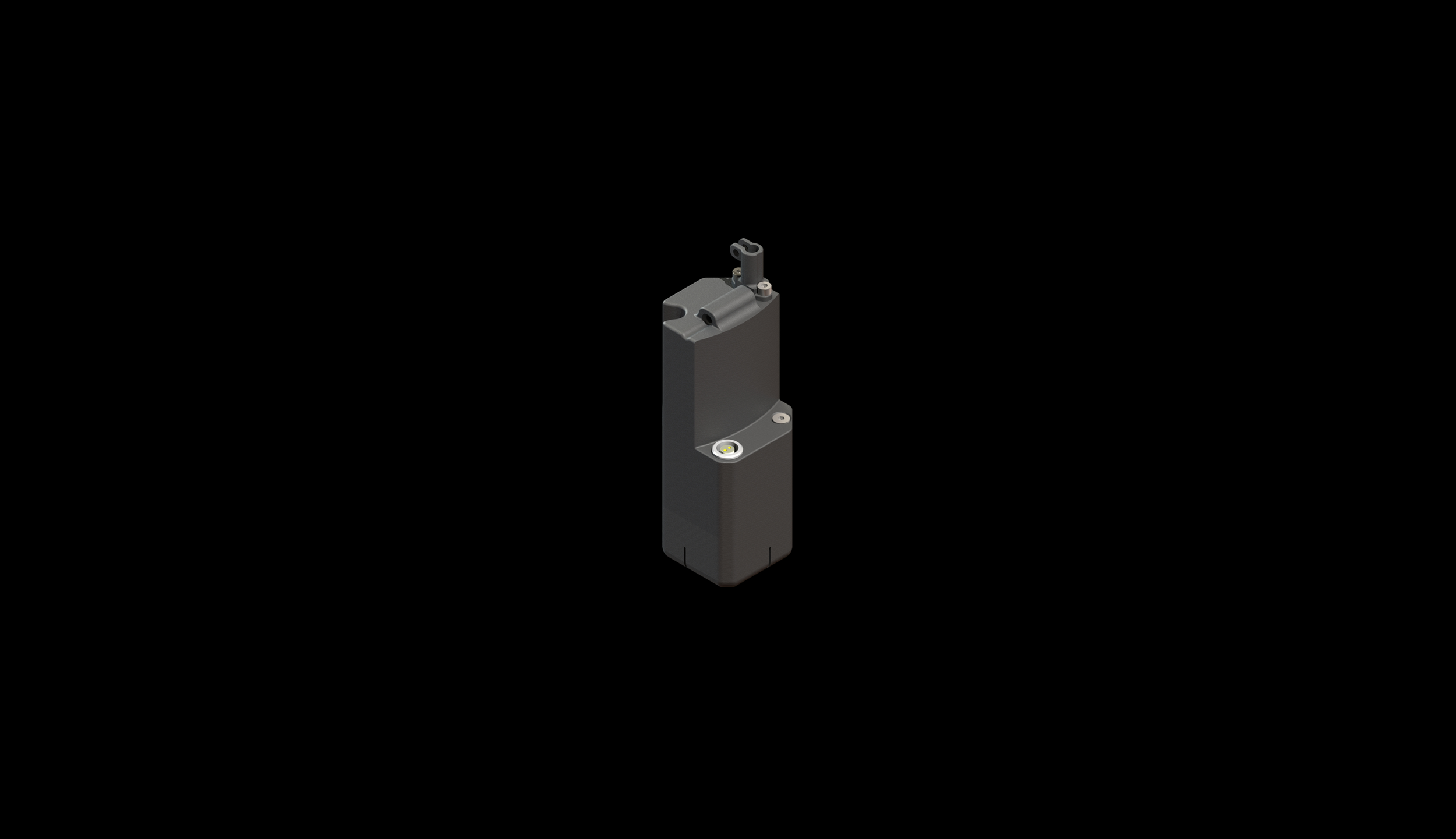

Low-Pull Switchable* EMAT
*Patent Pending
Our Switchable EMAT probe is designed to minimise the required robotic manipulation capabilities by allowing the detachment of the EMAT with negligible external input once the measurement is taken.
Technical Specifications
Sensor Name
Low-Pull Switchable Shear Wave EMAT
Polarisation
Linear
Aperture
10 mm x 10 mm
Max. Lift-Off Tolerance
2 mm
Actuation Time
2 seconds
Control
ROS enabled via USB
Operating Frequency
3 - 5 MHz
Thickness Measurement Range
2 mm – 100+ mm
Temperature Measurement Range
-10°C – 120°C ( +30 mins @ 80°C, +15 mins @ 120°C )
Connectors
2 Pin Lemo 0B
Sensor Size
38 L x 38 W x 97 H (mm)
Sensor Weight
111 g
