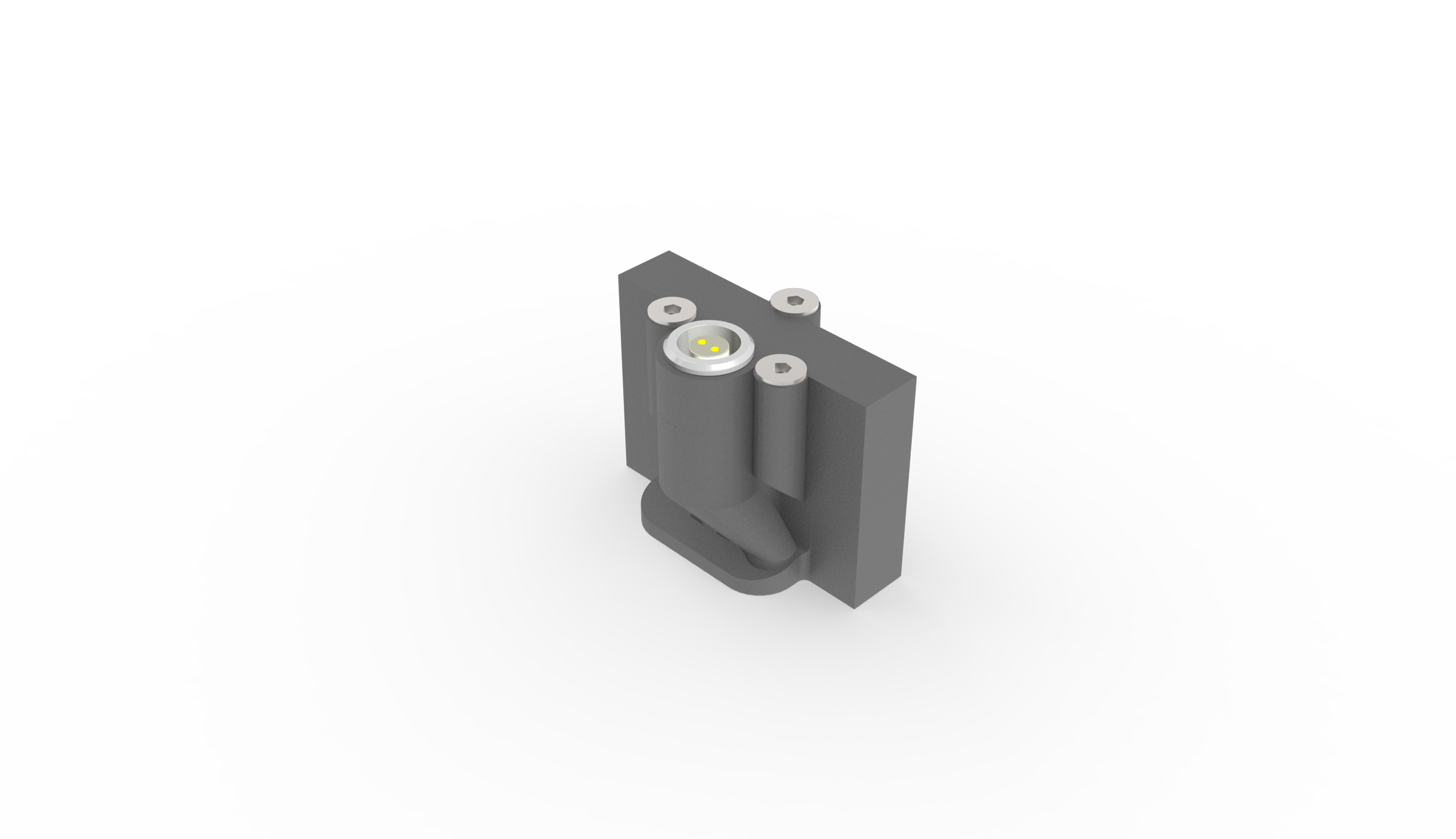

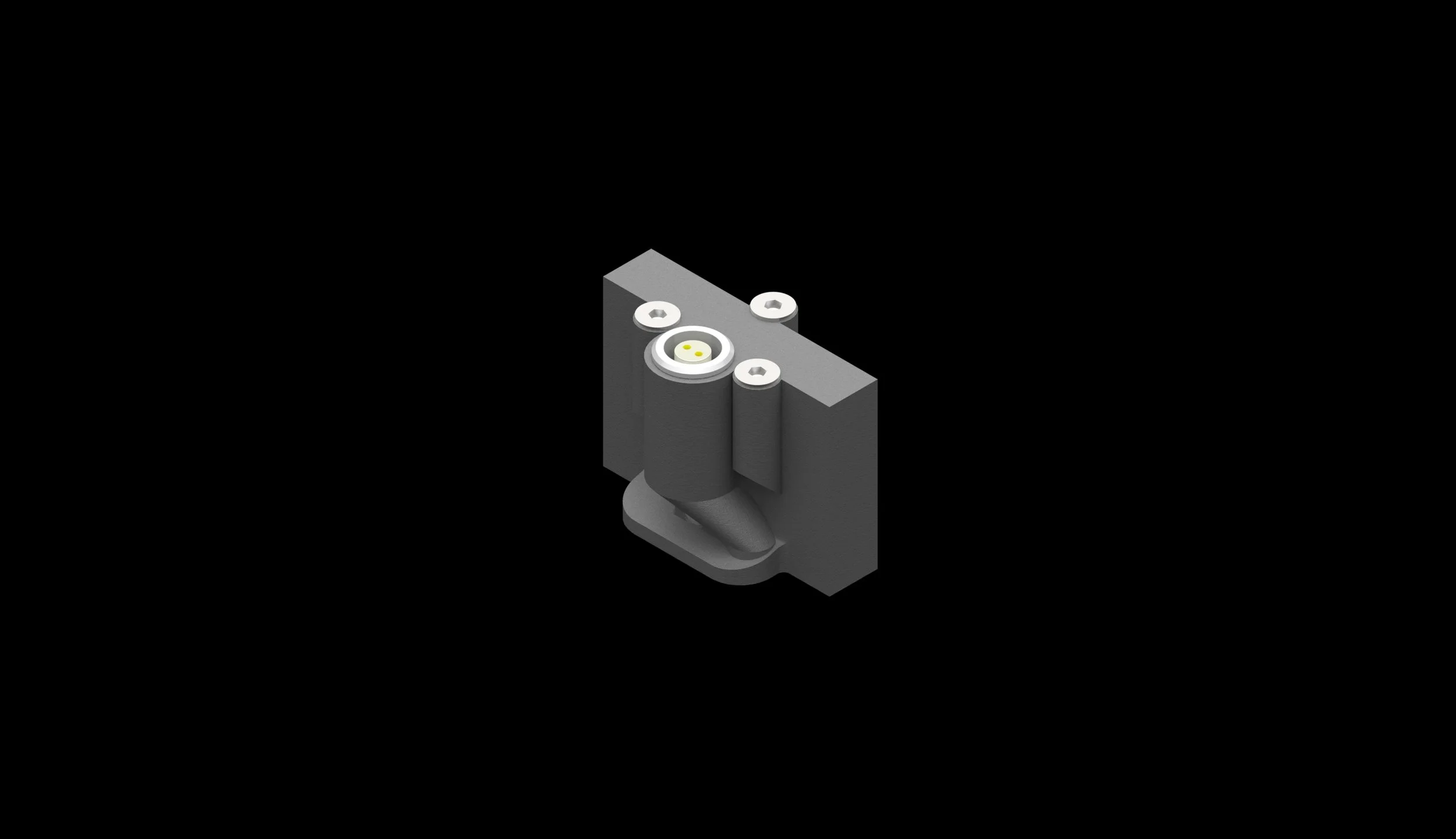

Small Aperture EMAT
Our Small Aperture Single-Channel linearly polarised EMAT probe is optimised for the SONUS EVO and EVO Lite acquisition systems to generate SH waves in a single direction for thickness measurement applications for scenarios where higher spatial resolution is required.
Technical Specifications
Sensor Name
Single-Channel Small Aperture EMAT
Polarisation
Linear
Aperture
5 mm x 5 mm
Max. Lift-Off Tolerance
1.5 mm
Operating Frequency
3 - 5 MHz
Thickness Measurement Range
2 mm – 60+ mm
Temperature Measurement Range
-10°C – 120°C ( +30 mins @ 80°C, +15 mins @ 120°C )
Connectors
2 Pin Lemo 0B
Sensor Size
50 L x 30 W x 40 H (mm)
Sensor Weight
84 g
